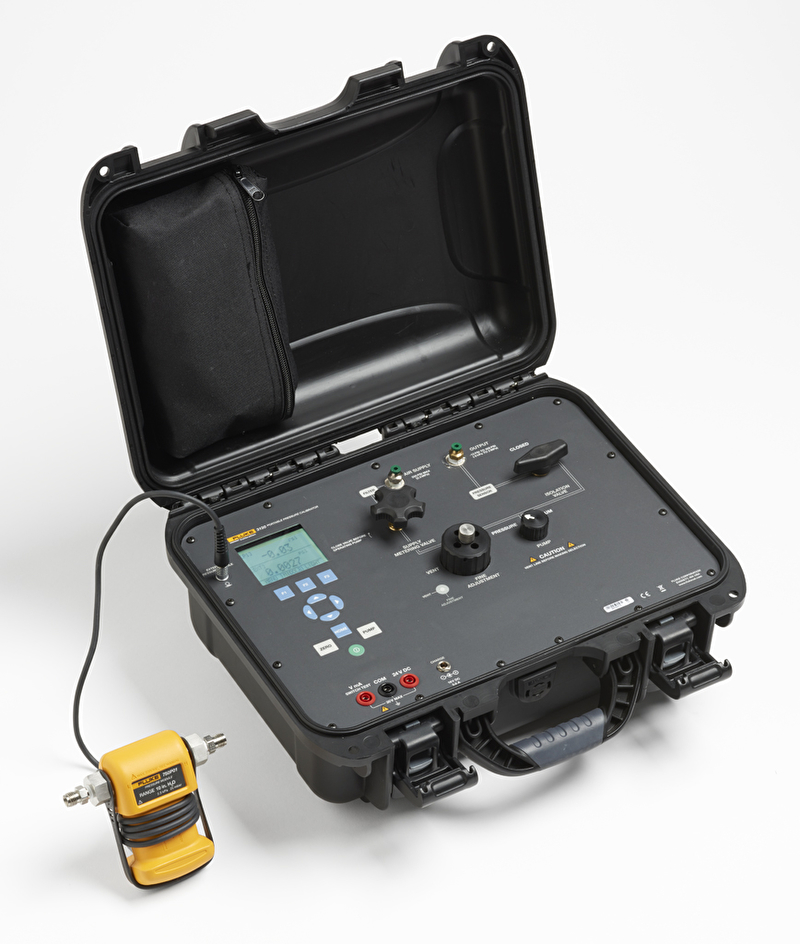

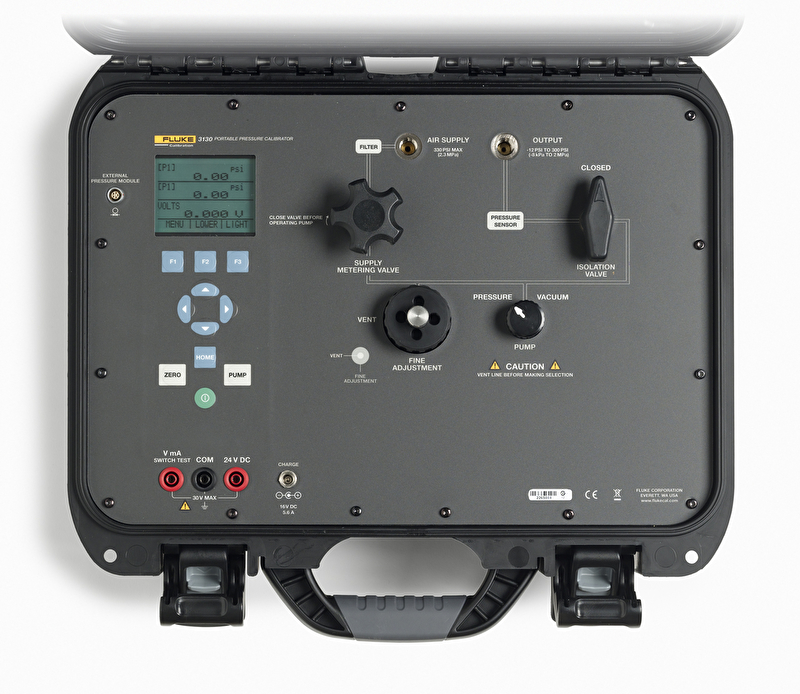

Fluke - 3130 CFR Portable Pressure Calibrator

The 3130 Portable Pneumatic Pressure Calibrator is ideal for calibrating pressure transmitters, transducers, gauges and similar devices.

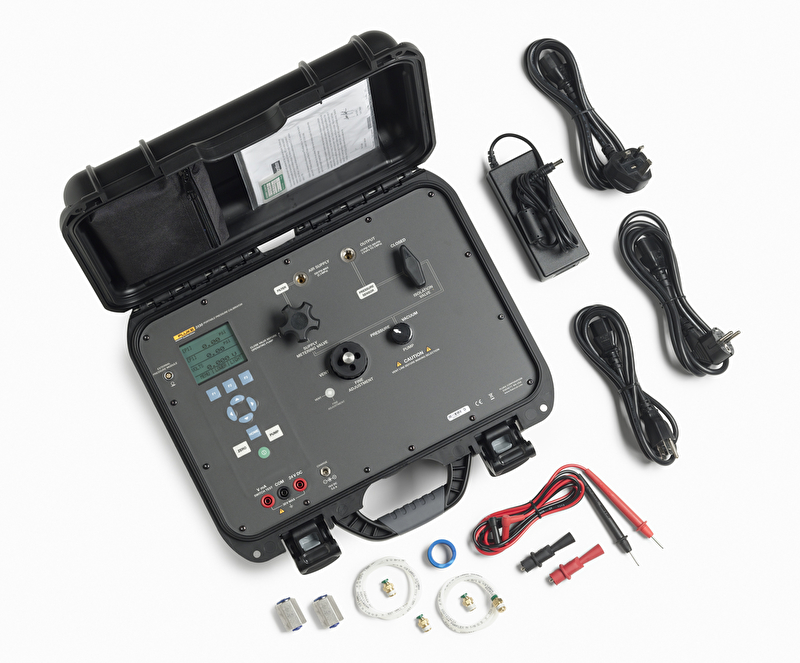

The 3130 contains everything you need to generate, control and measure pressure, as well as read the output of the device under test (DUT).

Features
Measure and generate pressures from vacuum to 2 MPa (300 psi, 20 bar)
Internal pump can generate vacuum to -80 kPa (-12 psi, -0.8 bar) or pressure to 2 MPa (300 psi, 20 bar)
Supply pressure connection allowing the use of external gas supply up to 2 MPa (300 psi, 20 bar)
Includes variable volume for fine adjustment of pressures
Pressure measurement accuracy of 0.025 % reading ± 0.01 % FS
Electrical measurement and 24 volt supply for close looped calibrations
Measure or generate 4 to 20 mA
Measure 0 to 30 V dc
Powered by internal, high capacity, NiMH battery or universal ac mains adapter
Compatible with Fluke 700P and 750P Pressure Modules

Specifications online: 3130 Technical Specifications
