Fluke - PG9600 Piston Gauges

Automated primary pressure reference for absolute and gauge pressures to 10 MPa

The PG9602 is the next generation of absolute pressure piston gauge from Fluke Calibration. It includes multiple piston cylinder range options to support absolute or gauge pressure measurements from 12 kPa to 10 MPa.
PG9602 uses Fluke Calibration’s unique integrated piston-cylinder assemblies to measure pressures up to 10 MPa. These piston-cylinder modules have been used for years with PG7000 piston gauges and are now selected and tested for low uncertainty operation with up to 100 kg of mass with PG9602. The PG9000 platform design and high mass load produce a wide range and high performance piston gauge that is the ideal instrument to disseminate primary PG9607 measurements to higher pressure ranges with the lowest possible uncertainty. The new platform architecture promotes improved temperature stability around the piston-cylinder.
PG9602 features AMH automated mass handling technology to allow fully automated testing in both gauge and absolute mode. Manual steps are removed from its operation, saving time and delivering metrological advantages. When AMH is coupled with automatic pressure control and computer software, repeated and extended tests become practical, making PG9602 a powerful calibration and research tool.
PG9602 is the result of Fluke Calibration`s extensive work with national metrology institutes (NMIs) to minimize pressure measurement uncertainty and years of supplying PG7000 piston gauges to NMIs and other top pressure metrology labs worldwide.

Automated primary pressure reference for absolute and gauge pressures to 500 kPa

The PG9607 is the next generation of absolute pressure piston gauge from Fluke Calibration. It supports the use of a 100 kg mass set to define gauge and absolute pressures from 11 to 500 kPa with a single piston-cylinder.

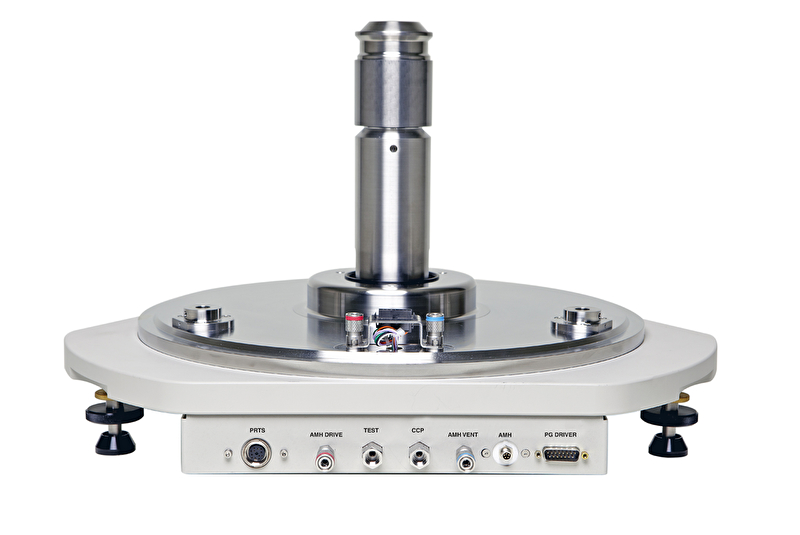

This piston gauge is designed for use as a true primary pressure reference in metrology and research institutes. Its performance is centered around a 50 mm piston-cylinder assembly with dimensional characteristics suitable for low-uncertainty dimensional traceability. The piston mounting post allows controlled clearance operation and reduced uncertainty on piston-cylinder temperature measurement. The new platform architecture promotes improved temperature stability around the piston-cylinder.
PG9607 features AMH automated mass handling technology to allow fully automated testing in both gauge and absolute mode. Manual steps are removed from its operation, saving time and delivering metrological advantages. When AMH is coupled with automatic pressure control and computer software, repeated and extended tests become practical, making PG9607 a powerful calibration and research tool.
PG9607 is the result of Fluke Calibration`s extensive work with national metrology institutes (NMIs) to minimize pressure measurement uncertainty and years of supplying PG7000 piston gauges to NMIs and other top pressure metrology labs worldwide.

Specifications Online: PG9602 tech specs  PG9607 tech specs
