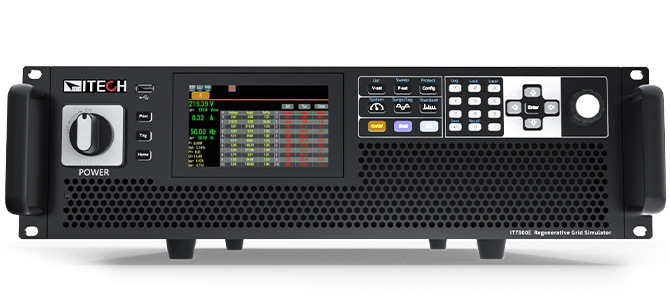

The IT7900E series is a programmable, four-quadrant grid simulator
It is also a four-quadrant power amplifier, which can be used to test various grid-connected equipment.
For example, PCS, energy storage system, microgrid, BOBC (V2X), PHiL, etc.
With advanced SiC technolgoy, a single unit of IT7900E can realize the anti-islanding protection test through islanding mode(RLC settable).
Besides, the power density of IT7900E series is very high, 6kVA in 1U, 15kVA in 3U. After parallel connection, the power can be extended to 960kVA at most.
Rich operating modes meet various test requirements of single-phase, three-phase, reverse-phase and multi-channel.
In reverse mode, the voltage can be extended to 200% of the rated voltage.
The strong arbitrary waveform editing function can simulate various power grid disturbance waveforms, making it an ideal choice for testing and R&D laboratories.
Highlighted Features
- Adopt advanced SiC technology
- High power density/minimum rack space, 3U up to 21kVA
- 16Hz~150Hz
- Regenerative grid simulator & full 4-Quadrant AC&DC power sources
- Power Amplifier function for PHiL applications
- Three working modes? CV/Current Limit/Power Limit
- AC, DC, AC+DC or DC+AC output capability
- Comprehensive working modes selectable: single-phase, three-phase, reversed phase
- Programmable Output Impedance, allows simulation of real-World
- Utility Grid Impedance
- Compliance tests incl LVRT /Phase Jump/Frequency variation/
- Harmonic Injection
- Supported regulatory testing include IEC61000-4-11/4-13/4-14 /4-28
Features
- Wide voltage ranges: 350/700/1050 VL-N*2
- Master-slave parallel with current sharing technology, up to 1MVA+
- Intuitive touch screen;Built-in single/3-phase AC power meter; Scope function
- Fast response time and high accuracy 0.1%+0.2%FS
- Waveforms Library : Sine wave, Square wave,Triangle wave, Clipped sine waves, trapezoidal wave, self-defined waves
- Harmonics and Interharmonics waveform synthesizer
- Power line disturbance simulation testing by LIST programming/
- SWEEP/Surge&Sag functions
- Up to 50th harmonic simulation and analysis function is included, along with built-in IEC61000-3-2/3-12 and other test regulations *1
- Harmonic simulation and analysis function can measure 50th order, built-in IEC61000-3-2/3-12 and other test regulations
- Output 0-360 ° start/stop phase angle can be set
- Front panel USB port for data and waveform import and export
- Relay CTRL function, to cut off the connection between instrument and DUT
- Built-in USB/CAN/LXI compliant LAN interface/Digital IO interface, optional GPIB /Analog&RS232
- Support CANopen?Modbus?LXI?SCPI communication
*1. Voltage/current harmonic analysis
*2. Pls. refer to IT7900E high voltage version
